Summary

Save £696! Offer Price - £4,695 £3999** Inc VAT + Free Delivery! Pay a deposit of £250 to secure your order.  Please Note delivery is Free only for mainland UK , not for Islands or Scotland, an additional cost will be incurred. Balance Payment by Bank Transfer.

The Electric powered SUR-RON Light Bee LB X Series Electric Dirt Bike promises advanced fun on all terrain. 60V and more than 6kW of peak power from a removal Panasonic Lithium ion battery pack. Forged light weight alloy frame combined with hi-spec components, total weight just 47kg. 4 Piston Hydraulic Disc Brakes Front and Rear. LCD dash with USB charger point. Aimed at youth to adult, with a climbing ability of over 45° it offers hours of near silent fun with a range of 20 to 60 miles per charge, depending on mode. Top speed 45 mph +, Fast Re Charge 2.5 to 3.5 hours. Full UK technical, spares and marketing support.

NB The LBX is an Off-Road Version - this machine has a throttle and is way too powerful to be used on the public path or highway, Its is not an EAPC Electrically assisted pedal cycle, If you want road legality we offer a road registered moped model.

*In the additional images of the black Sur-Ron LBX, the front fender , rear hugger and chain guard are optional parts*

New updates on the X Series Off-Road Version:

  • Sine wave controller delivers smoother power with more torque with ReGen for improved range.
  • DNM, RST, KKE or Fastace Suspension
  • Improved riding position: wider thicker seat combined with wider higher bars.
  • Heavier duty Gold O Ring chain for lower maintenance & reduced noise.

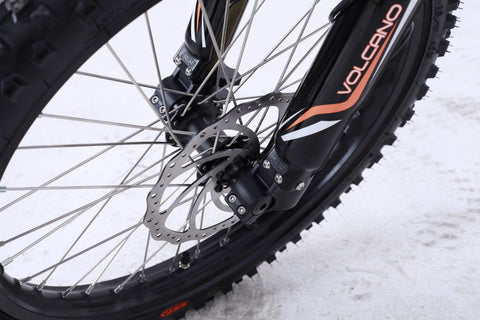

  • Updated brakes: 4 pot titanium finish calipers now with sintered pads with improved heat dissipation and braking power.
  • Pro handlebar grips in grey.

Tested and certified protection against dirt, dust, and wet weather use under normal riding conditions

** prices are inclusive of VAT and free delivery! Valid until Stocks last.

Specification

Motor
Motor Type: PMSM
Mounting Position: Mid
Weight / Motor External Diameter: 7.0kg / 180mm
Motor Axial Length: 130mm
Peak Efficiency: 95.60%
Cooling Method: Air-Cooled
Controller
Controller Type: X Version Sine Wave
Dimensions: 240mm x 110mm x 50mm
Peak Efficiency: 98.50%
Power Modes: Eco and Sport
Motor Power System
Rated Voltage: 60V (DC)
Rated Power / Peak Power: 3000W / 6000W
Rated Torque / Peak Torque: 10.2Nm / 39.00Nm
Motor Shaft Output Torque @ 1000RPM: 35.40Nm
Rated Rotation Speed: 4300rpm
Peak Efficiency: 97.8%
Range of Efficiency (≥80): 1.4Nm - 21.5Nm
Certificates
Road Legal: No
Transmission
Gear Ratio: 1:7.6
Transmission: Primary Belt & 420 Drive Chain
Belt Brand & Model: German Continental Brand, 8M CXA
Electrical Components
Horn: European Standard Horn
Battery: 60V 32A Lithium Battery with 176 Panasonic Cells
Battery Life Time: 500 Cycles (and then the capacity reduces step by step)
Battery Charge Level: Integrated Battery LCD Display
Charger: 10A
Charging Time: 2.5-3.5 Hours
USB Connection: USB-2.1 A Single Socket
Speedometer: LCD Digital Speedometer
LED Headlight & Rear Light: Yes
Crate Data
Crate Dimension: 1650mm x 850mm x 310mm
Gross Weight: 70kg
To Assemble from Crate: Handlebars, foot rests & insert front wheel
Warranty
Battery / Chassis / Swing Arm: 18 Months (or up to 20,000 miles on Battery which ever sooner)

Please be aware that any work on the high voltage systems MUST be carried out by a qualified dealer carrying hybrid electric vehicle certification.
Other Components: 12 Months, excluding service items and subject to servicing NB Warranty work is carried out free of charge subject to proof of correct service history.Surron warranty is a return to dealer cover and does not include transportation costs. We can arrange collection and delivery, but the cost must be paid by the owner, prices available upon request.
Vehicle
Chassis - Swing Arm Material: No. 6061 T4 & T6 Aluminium Alloy
Chassis Construction Method: Forged by 6000 Tons of Pressure
Chassis Surface & Colour Processing: Anodic Oxidation
Front Suspension: DNM, RST or Fastace
Rear Shock Absorber: Adj DNM, RST, KKE or Fastace Shock with TR Suspension Link System
Wheel Type & Size: Spoke Wheels, Front/Rear 19 x 1.4 Alloy Hubs
Tire Size: Front/Rear 70/100-19 CST
Top Speed: 47 MPH 73KMH Varies depending upon load and gearing
Max Range: 60 Miles @ 20 MPH average speed depending upon terrain
Net Weight: 47kg plus battery
Max Load: 100kg (15.75 Stone)
Max Climb: 45°
Rear Sprocket: 48T
Side Stand: Yes with kill switch
Vehicle Dimensions: 1870mm x 780mm x 1040mm
Min. Ground Clearance: 270mm
Wheelbase: 1260mm
Seat Height: 84 to 88cm


Highlights

Detailed Images



Technical

We aim to produce our own complete set of comprehensive technical documentation soon. However, our friends over at electricbikes.com have already produced some outstanding documentation and advise for the Surron LB E-Dirt Bike. These can be located using the links below.

Surron LB Documentation

Surron LB Modifications

This machine is NOT road legal for road or public places, it is for private land use only
